• Simple and elegant solutions to specific problems in object-oriented software design
• Primary purpose is to increase software reuse and flexibility
• Have developed and evolved over time
• First described systematically by Gamma, Helm, Johnson and Vlissides [GHJV95]
• Many of the patterns described here are from this book

We start with the reuse mechanisms built in to object-oriented programming.

Patterns are classified by their scope and their purpose.

A design pattern's scope specifies whether it applies primarily to classes or objects:

• Class patterns: Deal with relationships between classes and their subclasses
  • Achieved through inheritance
  • Fixed at compile-time — static
• Object patterns: Deal with object relationships
  • Achieved through association and interfaces
  • Can be changed at run-time — dynamic

Most patterns are object patterns.

A design pattern's purpose reflects what it does:

• Creational patterns: Concern the process of object creation
• Structural patterns: Deal with the composition of objects or classes
• Behavioral patterns: Characterize the ways in which classes or objects interact and distribute responsibility

Patterns described by GHJV95:

Cross-classifications:

• Creational class patterns: Defer some part of object creation to subclasses
• Creational object patterns: Defer object creation to another object
• Structural class patterns: Use inheritance to compose classes
• Structural object patterns: Describe ways to assemble objects
• Behavioral class patterns: Use inheritance to describe algorithms and flow of control
• Behavioral object patterns: Describe how a group of objects cooperate to perform a task that no single object can carry out alone

Object-oriented design can reuse code through:

• Inheritance
• Association

To understand design patterns one must understand the difference between class inheritance and interface inheritance.

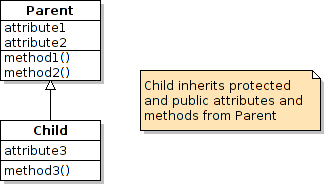

New classes can be defined in terms of existing classes using class inheritance (also called implementation inheritance):

• When a subclass inherits from a parent class, it includes the definitions of all the data and operations that the parent class defines
• Objects that are instances of the subclass will contain all data defined by the subclass and its parent classes, and they'll be able to perform all operations defined by this subclass and its parents

Class inheritance is basically just a mechanism for extending an application's functionality by reusing functionality in parent classes.

• Lets you define a new kind of object rapidly in terms of an old one
• Lets you get new implementations almost for free, inheriting most of what you need from existing classes

Class inheritance defines an object's implementation in terms of another object's implementation.

In short, it's a mechanism for code and representation sharing.

Inheritance can also be used to define families of objects with identical APIs by inheriting from a purely abstract class.

• In C++, purely abstract classes have only pure virtual methods
• In Java, interfaces are used

Interface inheritance (or subtyping) describes when an object can be used in place of another.

• A class that implements an interface merely adds or overrides operations and does not hide (override) operations of the parent class
• All subclasses can then respond to the requests in the interface of this abstract class, making them all subtypes of the abstract class

• Clients remain unaware of the specific types of objects they use, as long as the objects adhere to the interface that clients expect
• Clients remain unaware of the classes that implement these objects. Clients only know about the abstract class(es) defining the interface

     Parent y;
     ...
     y = new Child1();
     y.method1();       // some behavior
     ...
     y = new Child2();
     y.method1();       // different behavior


Interface inheritance so greatly reduces implementation dependencies between subsystems that it leads to the following principle of reusable object-oriented design:

Program to an interface, not to a class (or an implementation)

Don't declare a variable to be an instances of particular concrete classes if you need to assign various implementations of an interface to it.

     Child1 y;          // Bad?
     ...
     y = new Child2();  // Error: Can't assign Child2


Instead, commit only to interface types.

Reuse by subclassing (class inheritance) is often referred to as white-box reuse:

• The internals of parent classes are often visible to subclasses.

Code reuse can also be obtained by composing objects out of other objects, i.e., by creating object associations (or aggregations).

Object association is referred to as black-box reuse:

• Since an object controls the visibility of the internals of its associated objects, no internal details of objects may be visible

An example of how class inheritance is white-box reuse:

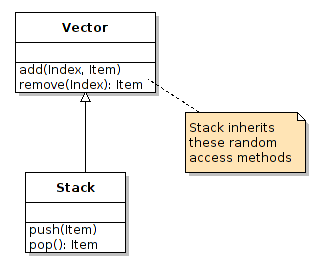

Since the internal details of the stack are exposed as a vector, stack encapsulation has been broken

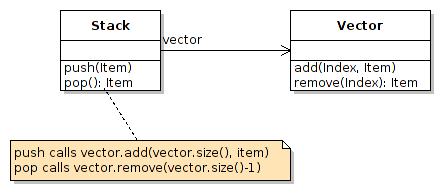

The preferred way to reuse the capabilities of a vector when implementing a stack:

Favor object association over class inheritance.

Using association promotes class cohesion: keeping classes encapsulated and focused on one task.

This principle also promotes smaller hierarchies and dynamic behavior.

Favoring association over inheritance promotes smaller hierarchies because classes and class hierarchies will remain small and less likely to grow unmanageably.

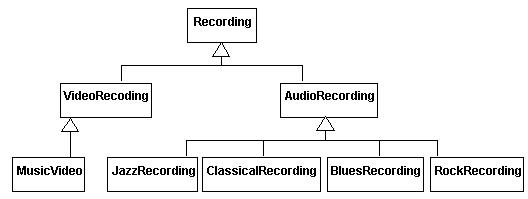

Here is an example of an inappropriate use of class inheritance:

Two problems with this:

1. Classes are so similar there would be little difference in their operations
2. Every time a new kind of recording is conceived, a new class must be created.

When a new kind of recording is conceived, a new RecordingCategory object is created with an appropriate label.

New kinds of recording generate new objects and relationships, but no new classes are created:

If the associated objects are related by an interface type, many different objects can be associated, allowing many kinds of behavior.

Recall graph search example:

• Search with a queue as a vertex dispenser: breadth-first search
• Search with a stack as a vertex dispenser: depth-first search

Dynamic behavior is a common objective in behavioral design patterns (see the Classification menu item).

Dynamic behavior involves a Delegator participant and a Delegatee participant, with the Delegator delegating part of its responsibility to the Delegatee.

Dynamic behavior enhances flexibility and easy reuse in several contexts, including when:

• A member of the Delegator class needs different behavior in different programs, or
• Different members of the Delegator class need different behavior in the same program, or
• A member of the Delegator class needs different behavior at different times in the same program.

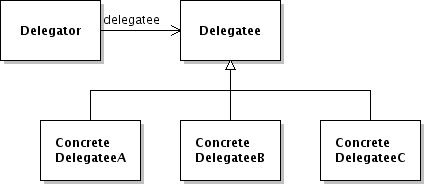

In any delegation the Delegator needs an instance variable to reference the Delegatee.

To achieve the flexibility goals of delegation, "Delegatee" just defines a common interface for a variety of concrete classes that implement different behaviors.

We refer to these concrete classes as ConcreteDelegatees, as shown below.

We will find that delegation plays a role of sub-pattern in several of the design patterns to follow.

Some of the behavioral and creational design patterns incorporate the general delegation idea.

Behavioral design patterns incorporating delegation include:

• Strategy
• State
• Observer
• Chain of Responsibility

Creational design patterns incorporating delegation include:

• Builder
• Abstract Factory

Following is a list of the GHJV design patterns labeled by purpose, where the labels mean:

	Behavioral
	Structural
	Creational

Participants

• Delegator: Handler
• Delegatee: Handler
• ConcreteDelegatee: ConcreteHandler1, ...

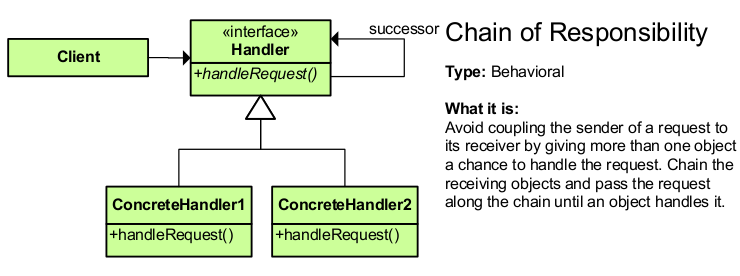

This example shows a chain of objects each of which knows how to handle a certain kind of integer.

If an object is given an integer it doesn't know how to handle, it passes responsibility to the next object in the chain.

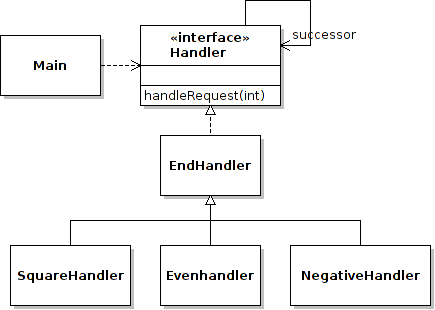

Following are files that implement the structure.

• Handler.java: Interface type for an integer handler
• EndHandler.java: Class implementing Handler and providing default behavior for the end of the chain. Objects of this type have no successors in the chain.
• SquareHandler.java: Class extending EndHandler and providing behavior for handling integers that are squares and passing off responsibility for non-squares
• EvenHandler.java: Class extending EndHandler and providing behavior for handling integers that are even and passing off responsibility for non-evens
• NegativeHandler.java: Class extending EndHandler and providing behavior for handling integers that are negative and passing off responsibility for non-negatives
• Main.java: Class that creates the objects, arranging them into a chain of responsibility, and testing them on some input.

• Exception Handling
• Cascading Stylesheets
• Classless Object-oriented Languages

Exceptions may be implemented using the Chain of Responsibility pattern, though the objects involved may not be visible to programmers:

• The Handler objects are activation records on the runtime stack.
• Catch clauses attach a special kind of method to the activation record that is active when the try statement is executed.
• This method is internally invoked when an exception of the appropriate type occurs.
• If an activation record does not have a catch method of the appropriate type then the exception is passed on to the parent activation record.

Document styles such as Content Style Sheets (CSS) often support style inheritance:

• In the element hierarchy (a Composite pattern), style attributes defined in one element may be inherited by its children.
• The method for locating an inherited style attribute for an element checks an attribute table in that element.
• If the attribute is not found there, a message with the same method is sent to the element's parent.
• The method recurs until the attribute value is found.

Inheritance mechanisms in classless OOLs may use a Chain of Responsibility design pattern to minimize the memory footprint of objects.

• Search for an object member starts in its own member table.
• If the member is not found there the search is forwarded to the object's prototype, which may forward to its prototype, and so on.

You want toimplement commands that behave like objects, either because you want to store additional information with commands, or you want to collect commands.

Example

Provide a way to access the elements of an aggregate object sequentially without exposing its underlying representation.

Participants

• Aggregate: defines an interface for creating an Iterator object.
• Iterator: defines an interface for accessing and traversing elements in an Aggregate.
• Concrete Aggregate: implements the Iterator creation interface to return an instance of the appropriate ConcreteIterator.
• Concrete Iterator: implements the Iterator interface, keeping track of its current position in the Aggregate.

Java Iterable Classes

• Aggregate: java.lang.Iterable
• Iterator: java.util.Iterator
• Concrete Aggregate: ArrayList, HashMap, …
• Concrete Iterator: Every class that implements the Iterable interface defines its own private concrete class that implements the Iterator interface. It is returned by the iterator() method.

Without violating encapsulation, capture and externalize an object's internal state so that the object can be restored to this state later.

Participants

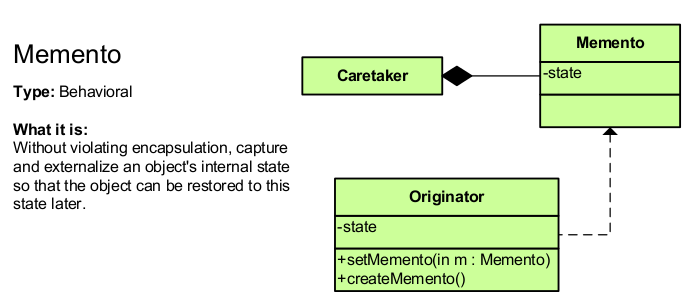

• Originator: provides a method that creates a Memento and a method with a Memento parameter that can be invoked later.
• Memento: stores all or part of the internal state of the Originator object.
• Caretaker: obtains the Memento from the Originator and later invokes an Originator method to restore its state, using the Memento as a parameter.

Example

Often used to support "undoable" operations in editors:

• The Memento object records information about the state of the document that is being edited.
• The editor restores this state to undo an earlier operation.

See Swing's UndoableEdit interface.

Participants in Delegation Pattern

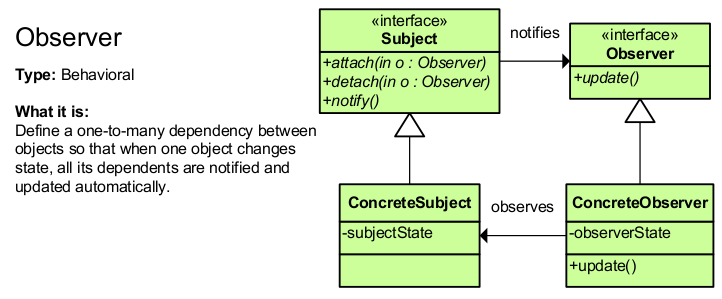

• Delegator: Subject
• Delegatee: Observer
• ConcreteDelegatee: ConcreteObserver

Example: Swing Listeners

• Subject: shared interface for subjects is not needed
• ConcreteSubject: various JComponent subclasses
• Observer: various types of listener
• ConcreteObserver: implementations of listener interfaces

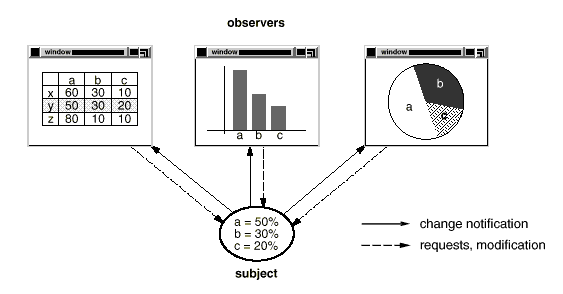

Example: Model-View Separation

Participants

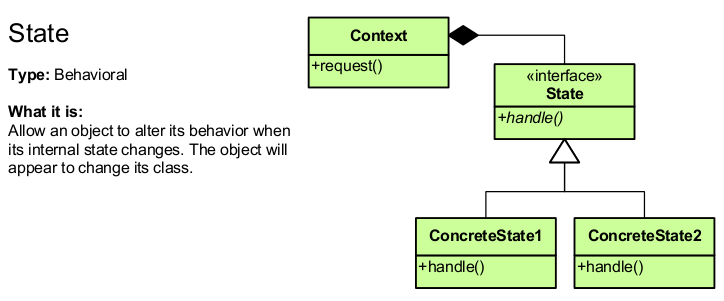

• Delegator: Context
• Delegatee: State
• ConcreteDelegatee: StateA, ...

Example: Network Connections

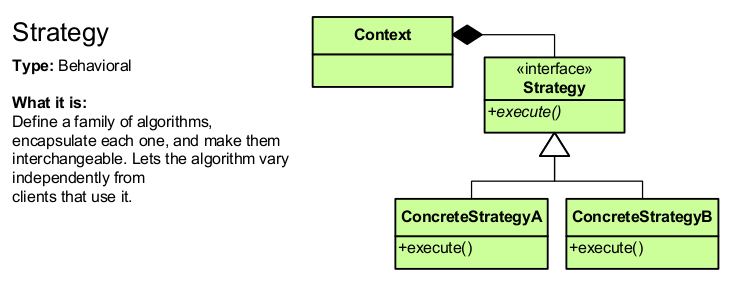

Participants in Delegation Pattern

• Delegator: Context
• Delegatee: Strategy
• ConcreteDelegatee: ConcreteStrategyA, ...

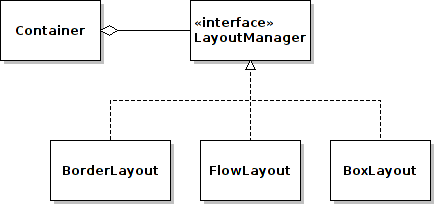

Example: LayoutManager

• Context: JPanel
• Strategy: LayoutManager
• ConcreteStrategy: BorderLayout, FlowLayot, BoxLayout, …

Adapter Bridge Composite Decorator Facade Flyweight Proxy

Participants

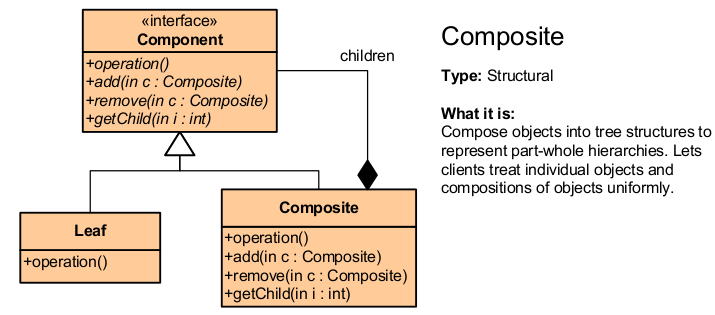

• Component: declares the interface for objects in the composition.
• Leaf: defines behavior for components having children.
• Composite: defines behavior for components having children.

Examples

Swing GUI classes provide an excellent example:

• JComponent plays the role of Component.
• JLabel and all of the Swing controls play the role of Leaf.
• JPanel, JScrollPane, JSplitPane, and JTabbedPanePane play the role of Composite.

Sometimes you want to encapsulate a group of classes in order to implement an abstract view of their combined functionality.

Participants

• Facade: delegates client requests to the appropriate subsystem objects.
• Subsystem classes: implement subsystem functionality.

Examples

Swing JTable, JTree, and JEditorPane.

Each of these examples combines an implementation of JComponent methods with Facade constructors and methods whose abstract view hides complex model, view, and controller classes.

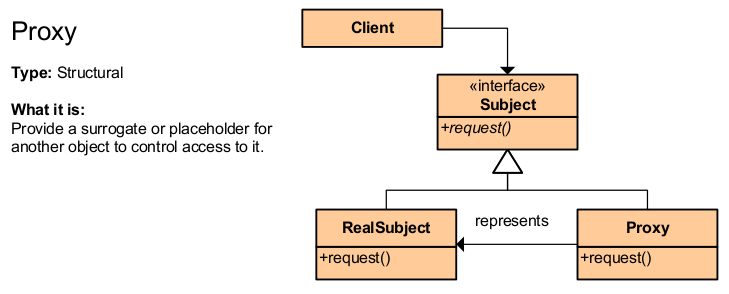

To make an object a (possibly lightweight) placeholder for another object.

Example

Abstract Factory Builder Factory Method Prototype Singleton

Participants

• Delegator: Client
• Delegatee: AbstractFactory
• ConcreteDelegatee: ConcreteFactory

Examples

Interface javax.swing.text.ViewFactory:

A factory to create a view of some portion of document subject. This is intended to enable customization of how views get mapped over a document model.

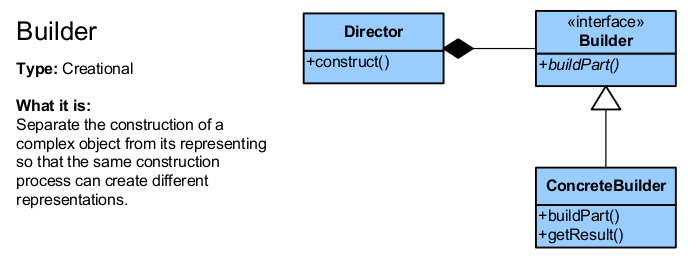

Participants

• Delegator: Director
• Delegatee: Builder
• ConcreteDelegatee: ConcreteBuilder

Examples

SAX parsers for XML.

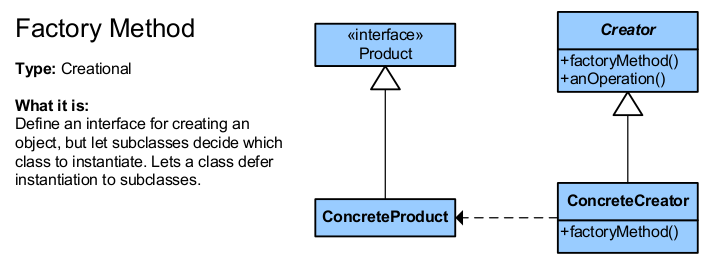

How to supply a method that can be overridden to create objects of varying types.

Example 1

Collection.iterator()

Example 2

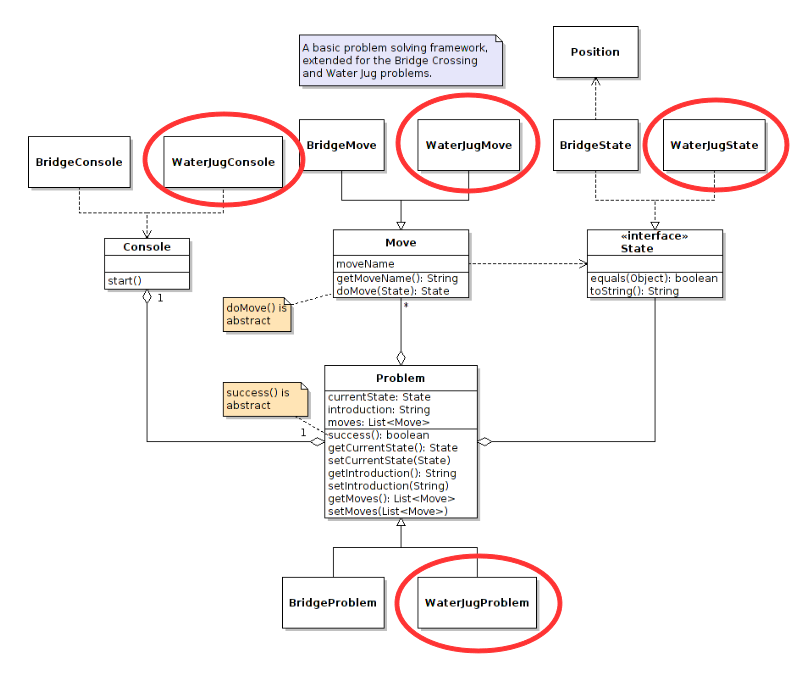

Move.doMove(State)

The goal of data abstraction in general is the clear separation of data's use from its implementation.

Data abstraction is achieved in object-oriented languages through encapsulation of state and behavior: making an object's internal state inaccessible directly, so that:

• It's representation is not visible from outside the object
• Data can only be accessed through available methods

Complex programs often need multiple levels of encapsulation, provided by encapsulation design patterns, that work by either:

• Providing a new form of encapsulation, or
• Protecting a high-level encapsulation by relaxing encapsulation at a lower level

Provide Encapsulation Relax Encapsulation

• Facade: provides a unified interface to a set of interfaces in a subsystem making it easier to use
• Strategy: encapsulates an abstract behavior that has several variations.

Facade Strategy

Sometimes you need to relax encapsulation at a low level in order to do a better job of encapsulation at a higher level.

Although this sounds contradictory, the improvement arises from the fact that allowing higher level classes to directly access data in lower level classes or vice-versa avoids having to declare public methods for the access.

For this reason, well-designed OOLs have mechanisms that allow one class to have access to private members of another class.

• In C++ you can declare one class as a "friend" of another class.
• In Java, a class can be nested inside of another class, which allows both classes to access private members of the other class.

Three design patterns that employ relaxed encapsulation:

• Observer: often provides a public method for modifying an object that it has private access to, but another object (a Subject) decides when the modification will occur
• Iterator: provides sequential access to objects in an Aggregate without exposing the implementation of the Aggregate
• Memento: carries state information about an Originator object, allowing the Originator private access to that information

Observer Iterator Memento
